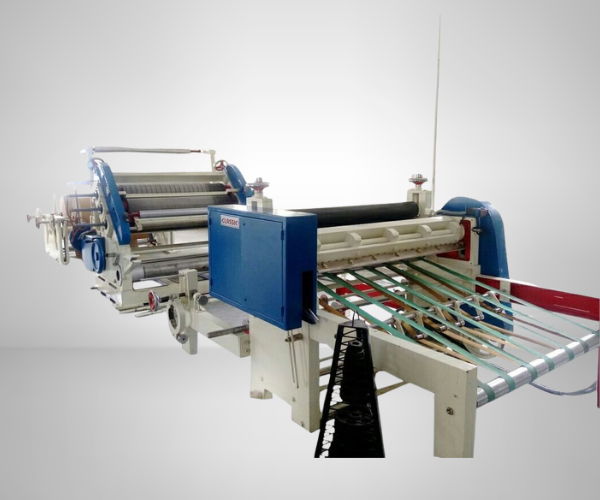

Automatic Sheet Cutting Machine
Technical Specifications
| Machine Type | Automatic Sheet Cutting Machine |
|---|---|
| Capacity | 0.40 - 3.5 mm |
| Automation Grade | Automatic |
| Model Name/Number | Hertz |
| Machine Speed | 120 mpm |
| Power | 150 Kw |
| Brand | Hertz |
| Coil Dimension | 1250 mm - 1650 mm |
| Weight | 30 MT |
| Design Type | Loop Type |
| Frequency Type | 4-5 Coils / Shift |
| Material | CR / GP Coils |
| Motor Power | 150 Kw |
| Phase | 3 Phase, 440 Volt, 50 Hz |
| Thickness | 0.40 - 3.5 mm |
| Size/Dimension | 8 metre x 25 metre |
| Unwind/Rewind Core | 10 MT - 30 MT |
| Guiding System | Vertical Guide Arrangement |
| Rewinding Type | Tight Rewinding |
| Driven Type | Automatic |
| Accuracy | 0.020 - 0.050 mm |
| Cutting | Rotary Type Cutting |
| Inside Core Diameter | 508 mm |
| Maximum Roll Diameter | 2000 mm |
| Minimum Width | 1650 mm |
| Optional Tools | Cutters and Spacers |
| Register Mark | Hertz |
| Slitting | Max 20 Nos |
| I Deal In | New Only |
| Availability | In Stock |
| Types | Single Loop / Double Loop / Without Loop |
| Coil Slitting Range | 0.20 mm to 6.0 mm thickness & 500 mm to 2000 mm width |
| Coil Weight | 5.0 - 30 MT (Input/Output) |
| Minimum Burr | Minimum Burr in Strip |
| Knife Accuracy | High Running Accuracy of Knife at Arbours |
| Parallel Distance | Constant Distance Between Deflector Roll & Re-coiler Drum |
| Max Speed | Up to 120 MPM |
| Efficiency | High Automation for Economical Efficiency |
| Installation | Onsite Installation |
